Fixing a Rock Band Mic

Discussion in 'Nintendo Wii Gaming' started by Brien, Jun 15, 2009.

  1. Brien

    Brien WiiChat Member

    Joined:
    May 20, 2009
    Messages:
    11
    Likes Received:
    0
    After having Rock Band for approximately 24 hours our puppy destroyed the microphone. He was running by, got the cord tangled around his leg and kept going. It yanked the cord and pulled the Wii onto the ground. Fortunately, the Wii is OK, but the Mic is trashed.

    In looking at the Mic it looks like the only thing that got damaged was the cord separated from the little black cover on the cord. When I opened up the cover there's a small board that the top part of the cord was soldered to. The bottom half of the cord has two wires, black and white that are still soldered good. However, the other end of the cord has 5 wires that went to 5 spots on this little board. I'm wondering if anyone has experienced a similar problem and was able to solder it back together. In fact, I know I can re-solder it, but the question is what wire goes where. There is no way of telling by looking at the wire or the board.

    I tried doing a search online and haven't found anything. So I'm hoping someone on here might be able to help. Thanks!

  2. ROB64

    ROB64 40lb box of rape

    Joined:
    Dec 8, 2007
    Messages:
    1,759
    Likes Received:
    26
    Location:
    Georgia
    Wii Friend Code: 0120-6723-8776-4093
    0120-6723-8776-4093
    You can re-solder it, just make sure to not short out another part of the board. Sorry, I don't have one, so I can't take a pic of where the wires go though...

  3. Brien

    Brien WiiChat Member

    Joined:
    May 20, 2009
    Messages:
    11
    Likes Received:
    0

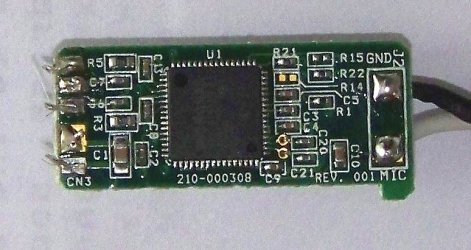

    Here's a pic of the board...


    Attached Files:

  4. ROB64

    ROB64 40lb box of rape

    Joined:
    Dec 8, 2007
    Messages:
    1,759
    Likes Received:
    26
    Location:
    Georgia
    Wii Friend Code: 0120-6723-8776-4093
    0120-6723-8776-4093
    Here's a pic of the connection:
    [​IMG]

    It goes: black, white, green, larger black wire, red.
    Hope this helps.

  5. Brien

    Brien WiiChat Member

    Joined:
    May 20, 2009
    Messages:
    11
    Likes Received:
    0
    WOW, that's perfect! Thank you so much!

  6. gidget

    gidget . ☆ ☆ ☆ .

    Joined:
    Dec 12, 2007
    Messages:
    2,589
    Likes Received:
    65
    Location:
    -= ohio, usa =-
    Wii Friend Code: 9999-9999-9999-9999
    9999-9999-9999-9999
    Rob also can help you with pivot cocks.
