Weeks go by, no mention of the new Wii version?

Discussion in 'Nintendo Wii Hardware' started by ciper, Jun 5, 2007.

  1. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    Confirmation of the new version of the Wii being sold at retail stores across the world has been on other forums for about 2 weeks. I still havn't seen it mentioned here sooo,,,, yeah now it is.

    The new revision has three legs broken off the chip that controls the DVD drive. The three legs are not required for the Wii to function so from the average users point of view nothing has changed.

    It is still possible to access the serial port on the drive but you have to use a dremel or acid to expose a small portion of what remains of the legs inside the chip.

    In short Nintendo has prevented the casual home user from making changes themselves. Good news for those who offer installation services!

  2. ZiG

    ZiG WiiChat Member

    Joined:
    May 27, 2007
    Messages:
    82
    Likes Received:
    1
    Woah, for a minute I thought it was gonna be some huge drastic change. Glad to know that to the average paying consumer like me, it'll make no difference. :)

  3. paintba||er

    paintba||er WiiChat Member

    Joined:
    Sep 17, 2006
    Messages:
    3,417
    Likes Received:
    53
    Location:
    Mormonville, Utah XBL GamerTag: sheise PSNID: s
    Wii Friend Code: 8354-0173-2009-5422
    8354-0173-2009-5422
    It was posted somewhere. I will try to find the link.
    Edit: Here it is.

    #3 paintba||er, Jun 5, 2007
    Last edited: Jun 5, 2007
  4. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    Yeah it wasnt like they set us up the bomb or anything. Its a good thing the serial number includes a date code so we can eventually tell what version a Wii is without looking inside.
    for great justice

    paintba||er: Well shoot! I missed that one Ill try to be useful either way. Here are some pictures of the first unmodable Wii being modified ;) Click to zoom

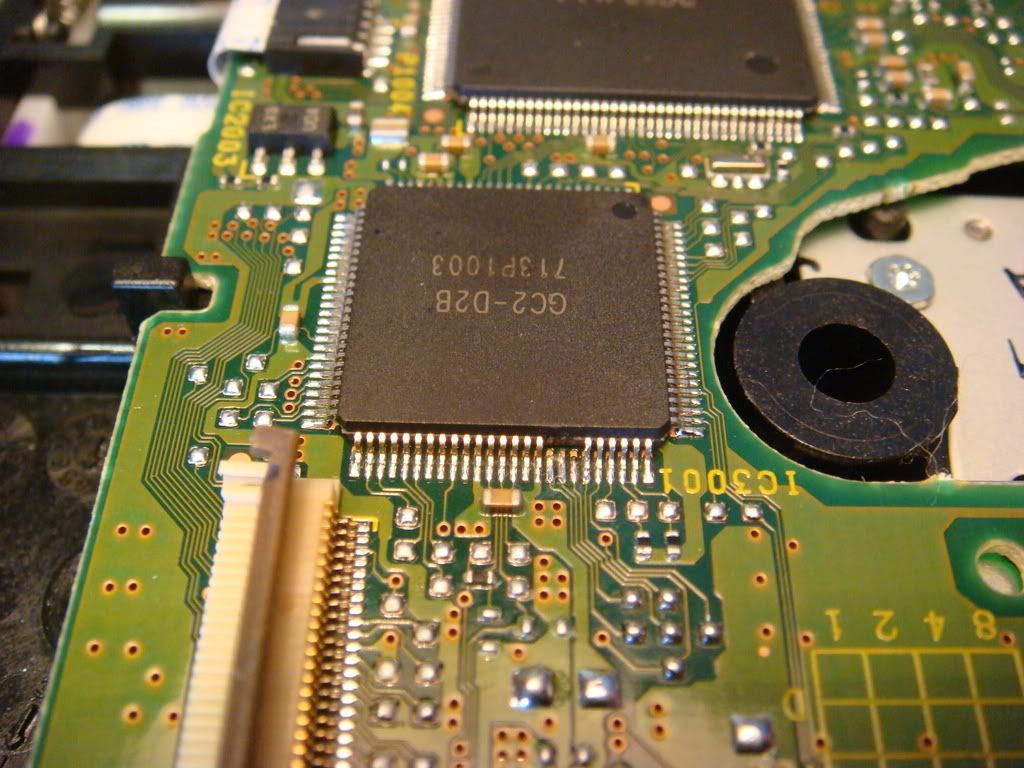

    Before:
    [​IMG]

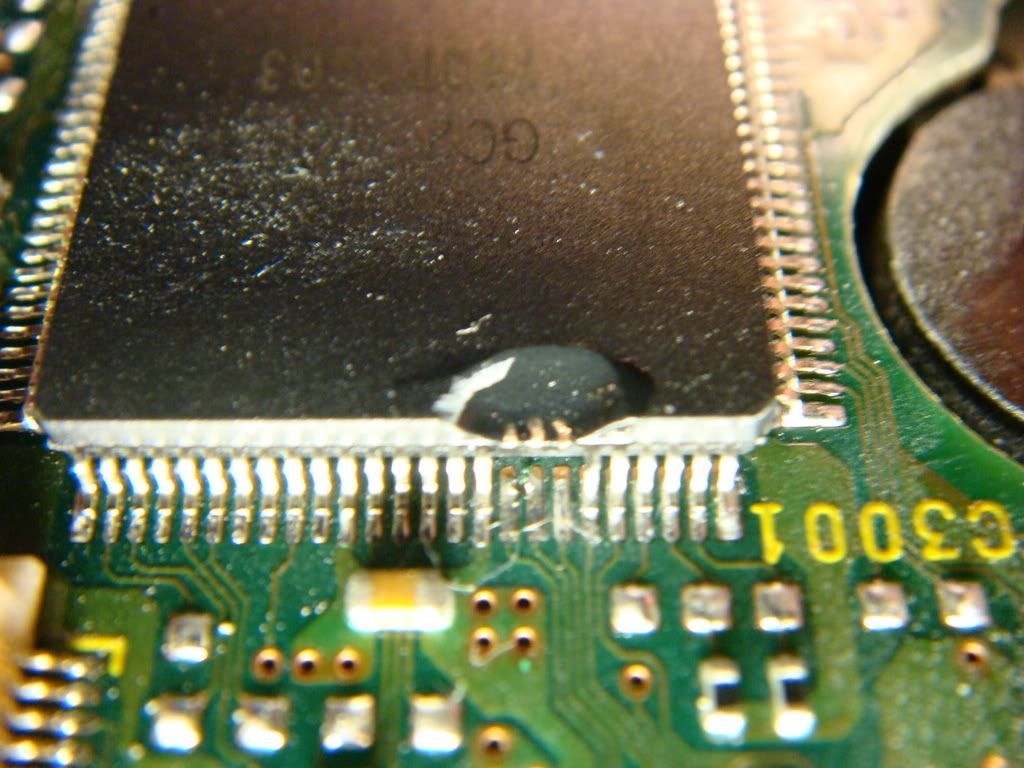

    Dremel:
    [​IMG]

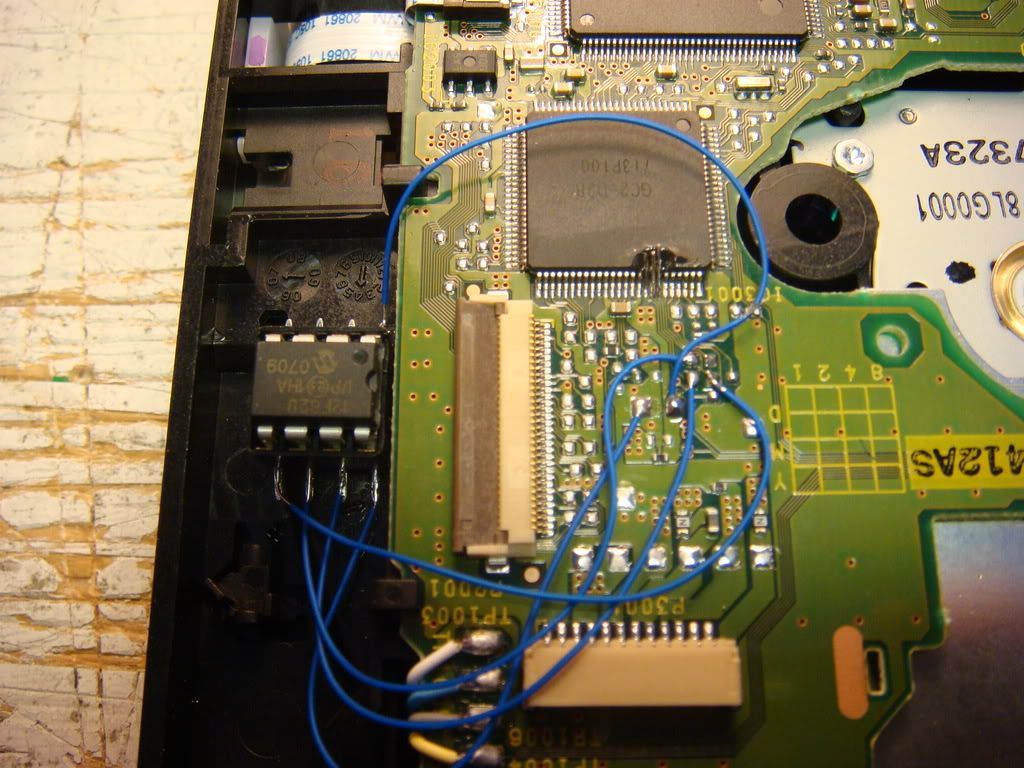

    After:
    [​IMG]

    Courtesy of wiimodmaster on psx-scene.

    #4 ciper, Jun 5, 2007
    Last edited: Jun 5, 2007
  5. billcsho

    billcsho WiiChat Member

    Joined:
    May 21, 2007
    Messages:
    323
    Likes Received:
    7
    Yeah, I saw that 2 weeks ago. Now it is impossible to revert the mod if you need to send it in for service.

  6. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    Owners in the UK have sent their Wii to Nintendo for repair after modification. Of course they had to pay out of pocket but last I heard unbricking a Wii after SPM firmware upgrade cost around 50 pounds

  7. paintba||er

    paintba||er WiiChat Member

    Joined:
    Sep 17, 2006
    Messages:
    3,417
    Likes Received:
    53
    Location:
    Mormonville, Utah XBL GamerTag: sheise PSNID: s
    Wii Friend Code: 8354-0173-2009-5422
    8354-0173-2009-5422
    I'm just glad that I got mine that I can easily mod. Now I'm just waiting for that solderless chip to come out.

  8. billcsho

    billcsho WiiChat Member

    Joined:
    May 21, 2007
    Messages:
    323
    Likes Received:
    7
    I have not heard any US version has the leg cut yet. So it is here now?

    #8 billcsho, Jun 5, 2007
    Last edited: Jun 5, 2007
  9. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    Why not find an older guy in your area that repairs electronics and pay him to install it? Its really not hard at all - I'm sure you are even capable.

    A solderless mod chip wont likely exist considering the board layout changes between early Wiis and current Wiis and the newest cut leg Wiis. Besides that there is little money to be made in mod chips now that you can make your own for just a few bucks.

    As Nike would say "Just Do It"

  10. billcsho

    billcsho WiiChat Member

    Joined:
    May 21, 2007
    Messages:
    323
    Likes Received:
    7
    You can buy a WiiKey clone for $8. Why go for open chip? I agree that the solderless one will be totally useless when it finally comes out. Wired installation is the way to go if you want to mod it.

  11. paintba||er

    paintba||er WiiChat Member

    Joined:
    Sep 17, 2006
    Messages:
    3,417
    Likes Received:
    53
    Location:
    Mormonville, Utah XBL GamerTag: sheise PSNID: s
    Wii Friend Code: 8354-0173-2009-5422
    8354-0173-2009-5422
    Well someone made thread about a solderless one coming out. I probably could do it my self, but I would rather not take the risk. Besides, I want to keep my warranty and I can't do that if I solder a modchip in there.

  12. ZiG

    ZiG WiiChat Member

    Joined:
    May 27, 2007
    Messages:
    82
    Likes Received:
    1
    Hahaha, nice. You're the first one that's made the connection.

    Er, the first that's said anything, anyway..

  13. mushroomedmario

    mushroomedmario ssb4life

    Joined:
    May 5, 2007
    Messages:
    3,828
    Likes Received:
    39
    Location:
    Waterloo, ontario, canada
    Wii Friend Code: 5701-4561-7633-7008
    5701-4561-7633-7008
    what is a "three legs"

  14. billcsho

    billcsho WiiChat Member

    Joined:
    May 21, 2007
    Messages:
    323
    Likes Received:
    7
    I just heard that the new European PAL Wii is now shipped with D2C chip which none of the current mod chips work even with all the IC legs intact.

    #14 billcsho, Jun 5, 2007
    Last edited: Jun 5, 2007
  15. Trulen

    Trulen Isn't here as much

    Joined:
    Oct 28, 2006
    Messages:
    1,138
    Likes Received:
    30
    Wii Friend Code: 1234-1234-1234-1234
    1234-1234-1234-1234
    Heeey...

    I think that original wiis are going to be going for a pretty penny on eBay :ihih:
    'Cause I got no intention on modding my wii.
    Others will.

    And they'll pay 500 bucks for an early wii! :devil:


    Now to get on-topic, these three "legs"....
    That's how modders are able to ... Mod?

  16. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    The D2C chips are still rare in the wild. None of the modchip developers have them in hand to test with yet so while it is true that they can't be modded currently I wouldn't worry for long.


    mushroomedmario: Three legs on the IC. I guess you could also say three pins?

  17. billcsho

    billcsho WiiChat Member

    Joined:
    May 21, 2007
    Messages:
    323
    Likes Received:
    7
    It is true that it may just take time for the mod chip developer to catch up with the new chip. Nevertheless, there are several mod chips that still do not work on D2B chip. So the change of chip would delay the development and update of the mod chips and only those with strong support team may survive. On the other hand, what if the new chip has the circuits to those 3 legs disconnected internally? I don't see a way to get around this yet.:wtf:

  18. ciper

    ciper

    Joined:
    May 1, 2007
    Messages:
    2,008
    Likes Received:
    41
    Location:
    ▐▄█▀█▄▌
    The Wiip2 is supposedly compatible with D2C chipsets and is in beta testing! Its being desgined by team xecutor of Xbox fame



  19. allstar2b87

    allstar2b87 Allstar Mario Player

    Joined:
    Jun 4, 2007
    Messages:
    246
    Likes Received:
    3
    Location:
    Canada
    Wii Friend Code: 3201-2736-5122-4454
    3201-2736-5122-4454
    jeeez...ppl tryin to tell me my wii is screwd up or soemthing lol :p...legs broken and all..haha..jk.......oh well..i wont be modding my wii ne wayz....im done with mods...i modded my xbox's ..that was fun for a while...but ...im just gunna kick it with the wii old school :p
