Speaker adaptor.

Discussion in 'The Lounge' started by CrocoLylee, Feb 22, 2009.

  1. CrocoLylee

    CrocoLylee mnehh

    Joined:
    Jan 27, 2009
    Messages:
    478
    Likes Received:
    0
    Location:
    Greenock, Scotland.
    Wii Friend Code: 1234-1234-1234-1234
    1234-1234-1234-1234
    Is there any such adaptor or anything which can let me connect 4 speakers to my hi-fi using speaker cable?


    Thanks for any help. :)

  2. ROB64

    ROB64 40lb box of rape

    Joined:
    Dec 8, 2007
    Messages:
    1,759
    Likes Received:
    26
    Location:
    Georgia
    Wii Friend Code: 0120-6723-8776-4093
    0120-6723-8776-4093
    more info?

    If it uses a banana plug connection, you can buy Y splitters for it, same if it uses RCA cables.
    If it doesn't have any special connector (just a stripped wire in a spring terminal or wrapped around a screw post) you can connect the wires with a wire nut.

    Find everything you need at Parts Express.

  3. CrocoLylee

    CrocoLylee mnehh

    Joined:
    Jan 27, 2009
    Messages:
    478
    Likes Received:
    0
    Location:
    Greenock, Scotland.
    Wii Friend Code: 1234-1234-1234-1234
    1234-1234-1234-1234
    Some more info:

    In the back of my hifi I have two red speaker wire ports and two black speaker wire ports which my speakers are connected to.

    Sorry. Im not very good with things like wiring etc. :(

  4. ROB64

    ROB64 40lb box of rape

    Joined:
    Dec 8, 2007
    Messages:
    1,759
    Likes Received:
    26
    Location:
    Georgia
    Wii Friend Code: 0120-6723-8776-4093
    0120-6723-8776-4093
    Do they look something like this:
    [​IMG]

  5. CrocoLylee

    CrocoLylee mnehh

    Joined:
    Jan 27, 2009
    Messages:
    478
    Likes Received:
    0
    Location:
    Greenock, Scotland.
    Wii Friend Code: 1234-1234-1234-1234
    1234-1234-1234-1234
  6. ROB64

    ROB64 40lb box of rape

    Joined:
    Dec 8, 2007
    Messages:
    1,759
    Likes Received:
    26
    Location:
    Georgia
    Wii Friend Code: 0120-6723-8776-4093
    0120-6723-8776-4093
    Ah, then you won't need any special adapters for it.
    I did this with my stereo, and it works fine (I have 8 speakers hooked up to a tuner that should only have two xD). It's not the best way, but it's the cheapest, and it works.

    What you need to do is take the negative wires from the left speakers and splice them together with a short (maybe six inches) length of speaker wire, then do the same with the positive cables.
    Do the same thing with the negative and positive cables from the right speakers. Now you can just insert the short wires in the plugs on your stereo.

    You should use wing nuts for this (they're very cheap) but you can get away with just twisting them and wrapping electrical tape around the exposed wires so the negative and positive don't touch.

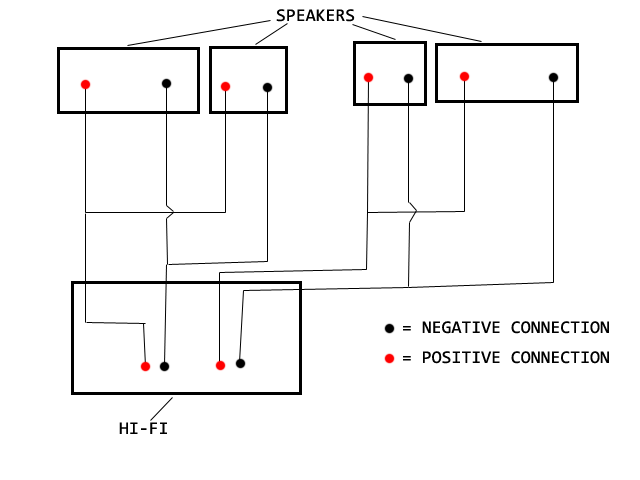

    It should look something like this:
    [​IMG]

    #6 ROB64, Feb 23, 2009
    Last edited: Feb 23, 2009
  7. CrocoLylee

    CrocoLylee mnehh

    Joined:
    Jan 27, 2009
    Messages:
    478
    Likes Received:
    0
    Location:
    Greenock, Scotland.
    Wii Friend Code: 1234-1234-1234-1234
    1234-1234-1234-1234
    Thanks for your help Rob ;).
    Works a charm:).
